MTX Dual Seals

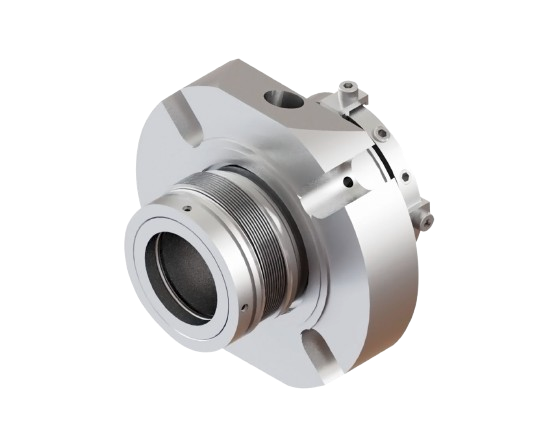

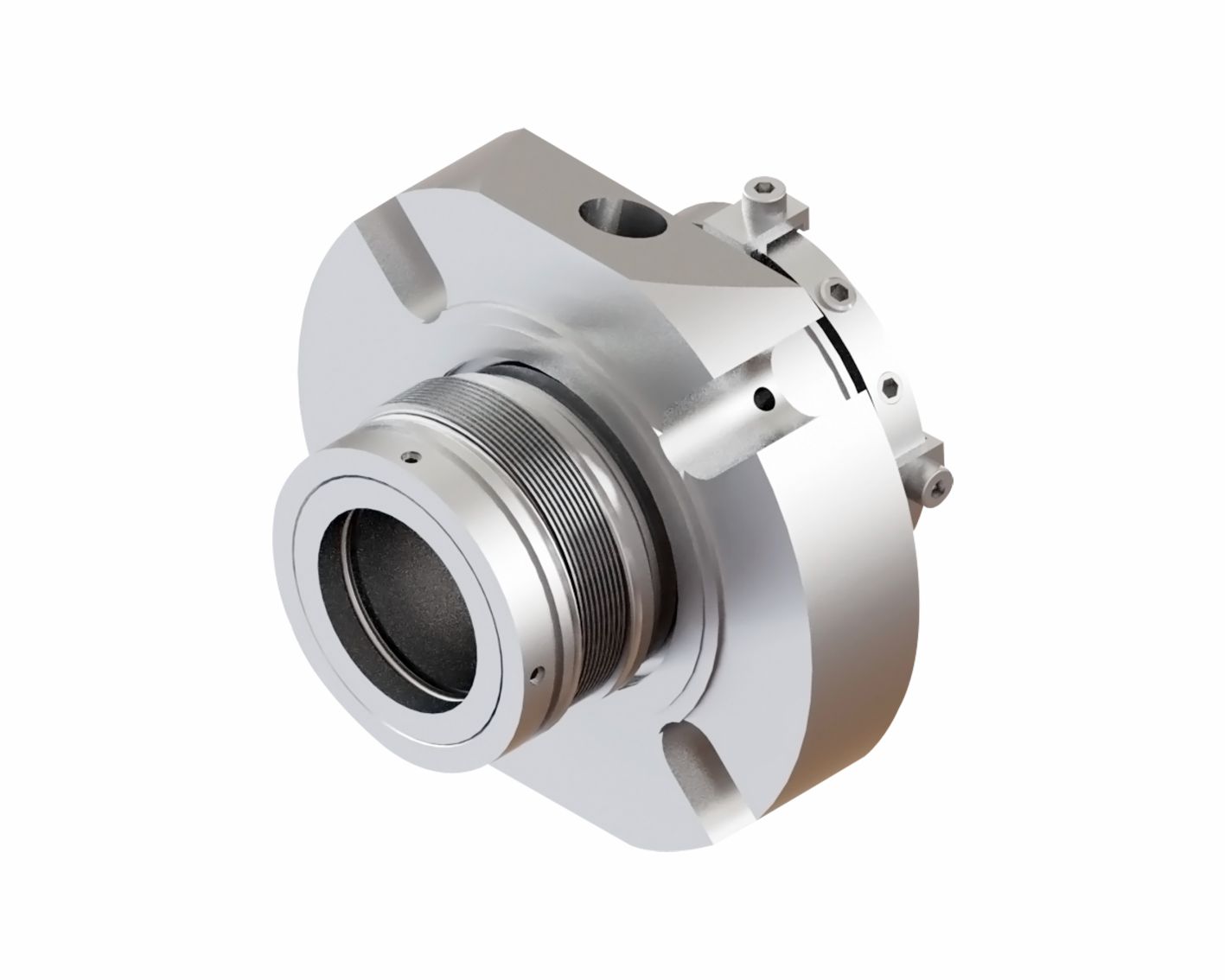

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Metal bellows design
  • Designed with integrated pumping device for increased efficiency in circulation
  • Stationary O-ring design
  • Seals with API Plan 52 and API Plan 53/54
Details
Item No. Description

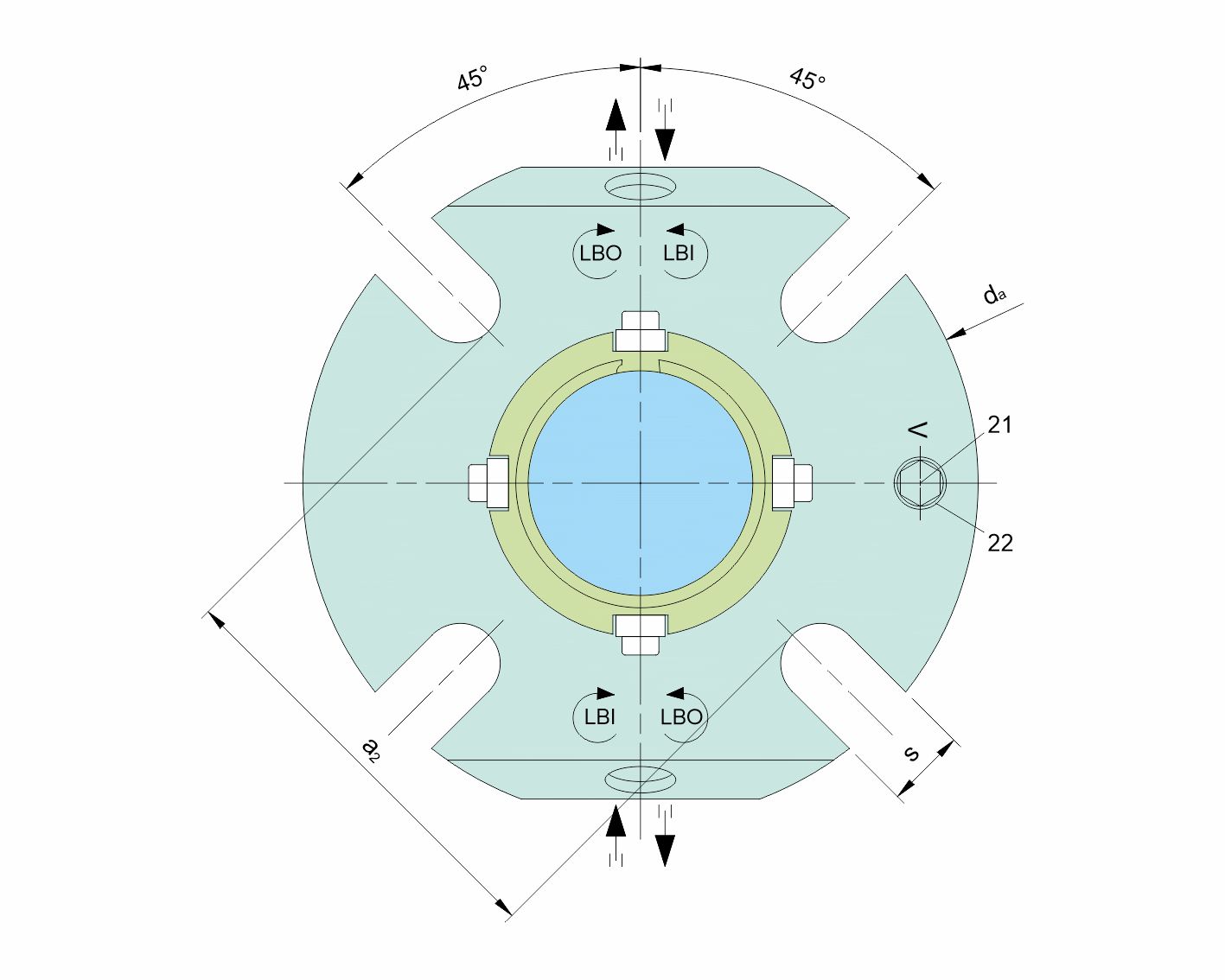

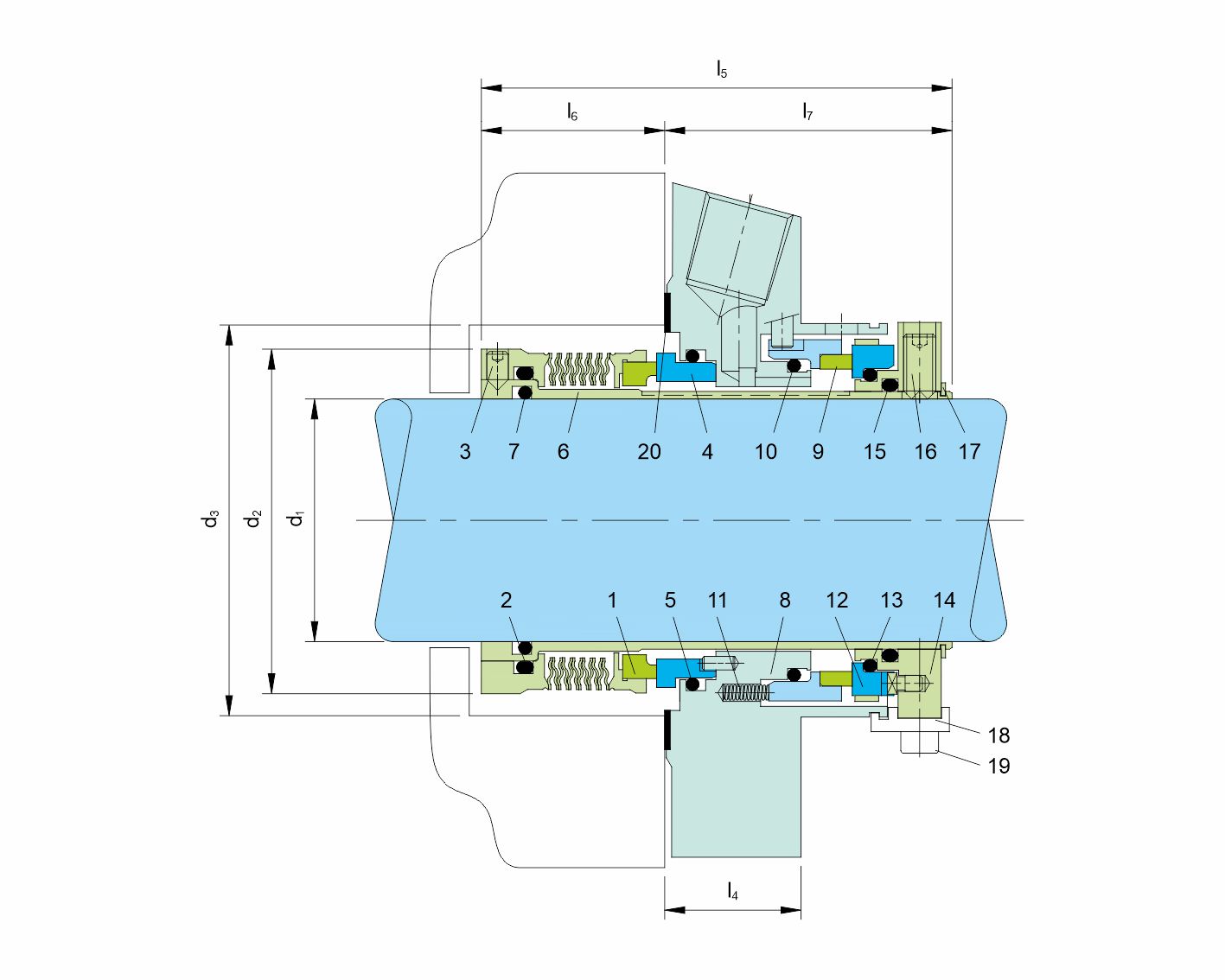

1 Bellows unit
2, 5, 7,10, 13, 15 O-Ring
3, 16 Set screw
4 Seat
6 Shaft sleeve
8 Cover
9 Seal face
11 Spring
12 Seat
14 Drive collar
17 Retaining ring
18 Assembly fixture
19 Hex socket head screw
20 Gasket
21 Screw Plug
22 Gasket

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Ideal for use in process pump standardization
  • O-ring is dynamically loaded to prevent shaft damage.
  • Dimensional modification of the stuffing box chamber is not required due to short radial installation height
  • Ideal to convert and retrofit pumps with packings and large volume OEM production
  • Cartridge unit factory assembled for easy installation, which reduces downtime
  • Rugged design for long operating life
  • Bellows design efficiently ensure selfcleaning
  • Suitable for high temperature applications
  • Refining technology
  • Petrochemical industry
  • Hot media
  • Cold media
  • Highly viscous media
  • Pumps
  • Special rotating equipment
  • Dimensions, items and descriptions as for MTX-DN, but with optimized seal face geometry for pressurized operation according to API Plan 53/54. A barrier fluid system (e.g. Sealmatic BFS2000) is necessary
  • Pressure: p1 = 10 bar (145 PSI)
  • Speed = 20 m/s (66 ft/s)
  • Barrier fluid circulation system:
    p3max = 16 bar (232 PSI)
    Δp (p3 – p1) ideal = 2 … 3 bar (29 … 44 PSI)
    Δp (p3 – p1) max = 16 bar (232 PSI) API Plan 53/54
  • Pump startup:
    Δp (p3 – p1) max = 16 bar (232 PSI) allowed
  • Seal face: Carbon graphite (A),
    Silicon carbide (Q1)
  • Seat: Silicon carbide (Q1),
    Tungsten carbide (U2)
  • Secondary seals: FPM (V), EPDM (E), FFKM (K)
  • Bellows: Inconel® 718 (M6)
  • Springs: Hastelloy® C-4 (M)
  • Metal parts: CrNiMo steel (G), Duplex (G1)
  • Shaft diameter: d1 = 25 ... 80 mm (1" ... 3.15")
  • Temperature : t* = –40 °C ... +220 °C
    (– 40 °F ... + 428 °F)
  • Pressure: p 1 = 25 bar (232 PSI)
  • Speed = 20 m/s (66 ft/s)
  • Barrier fluid circulation system: p3max = 16 bar (232 PSI)
    Δp (p3 – p1 ) ideal = 2 ... 3 bar (29 ... 44 PSI)
    Δp (p3 – p1 ) max.
    = 10 bar (145 PSI) at <120 °C (<248 °F)
    = 5 bar (73 PSI) at ≤ 220 °C (≤ 232 °F)
  • API Plan 52 (53/54)
    Pump startup:
    Δp (p3 – p1 ) max.16 bar (232 PSI) allowed
    * Operating limits of O-rings to be observed
