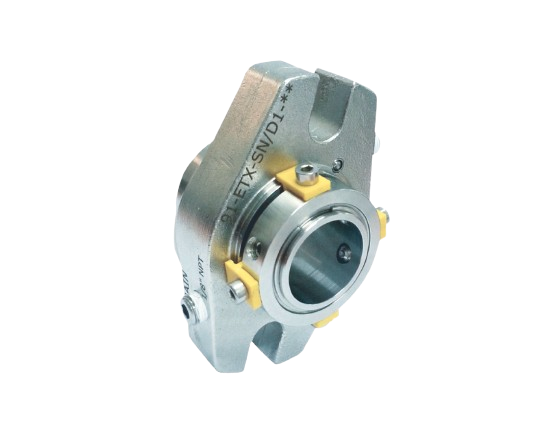

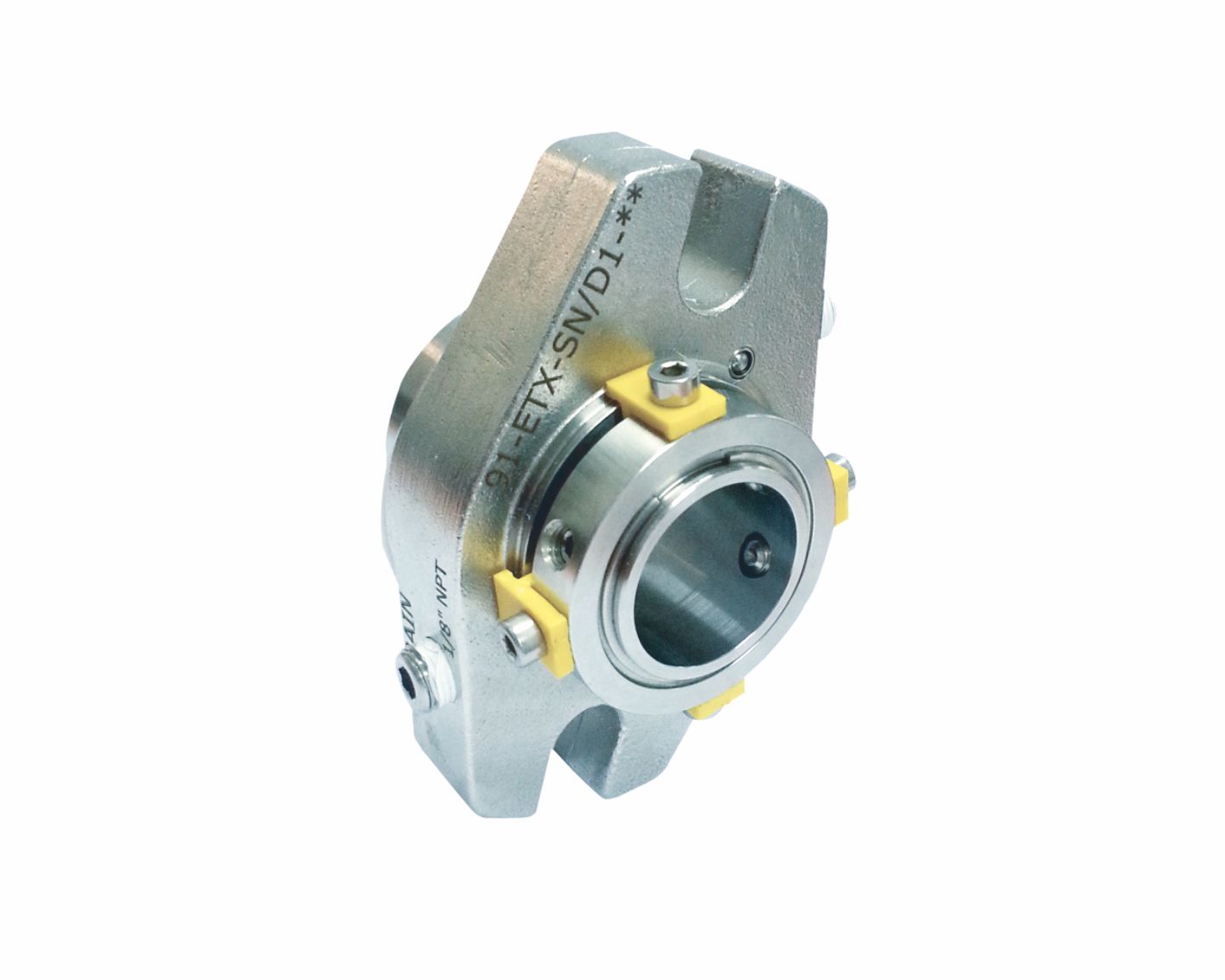

ETX Single Seals
Product Description
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction

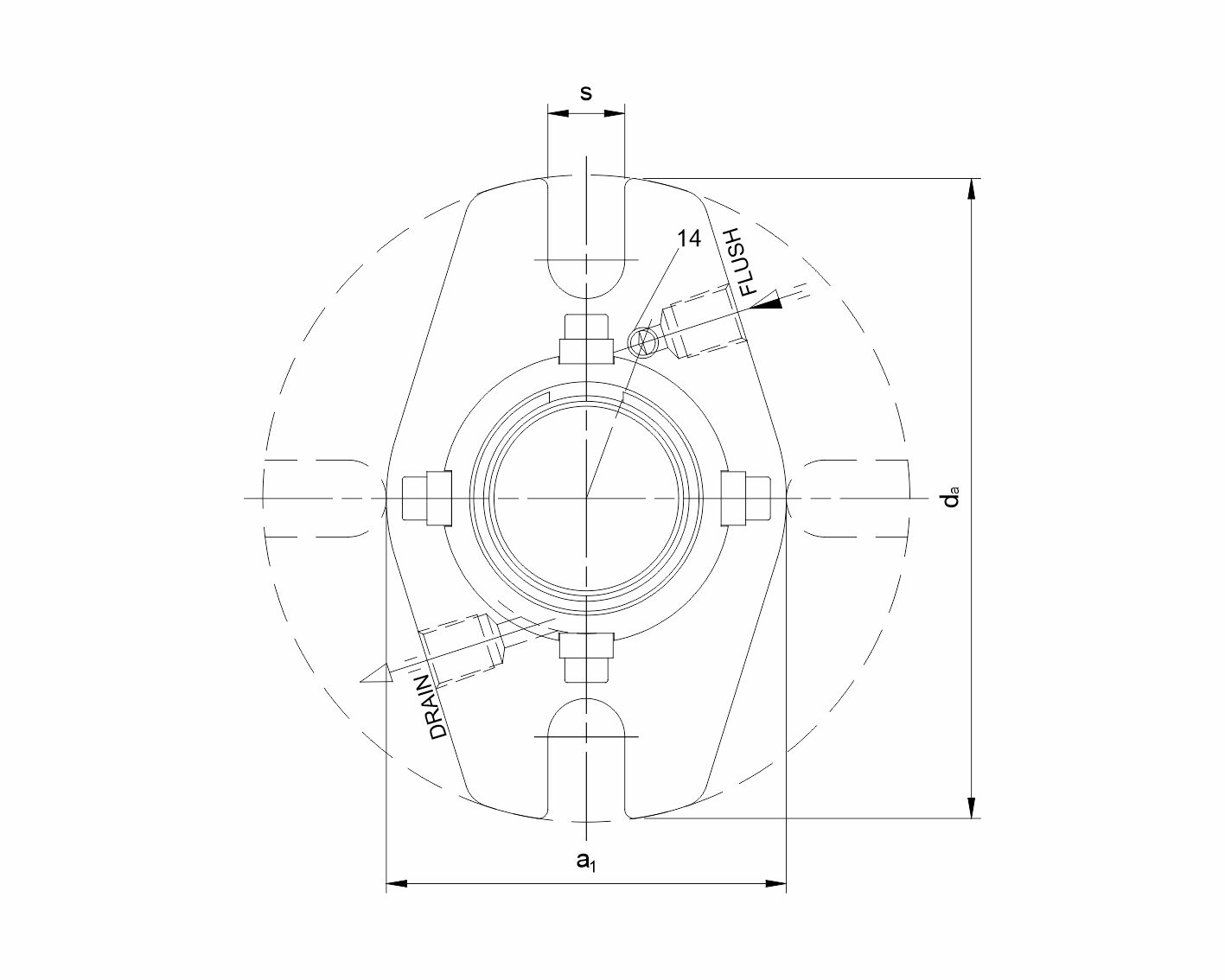

- Available with flush and quench connections

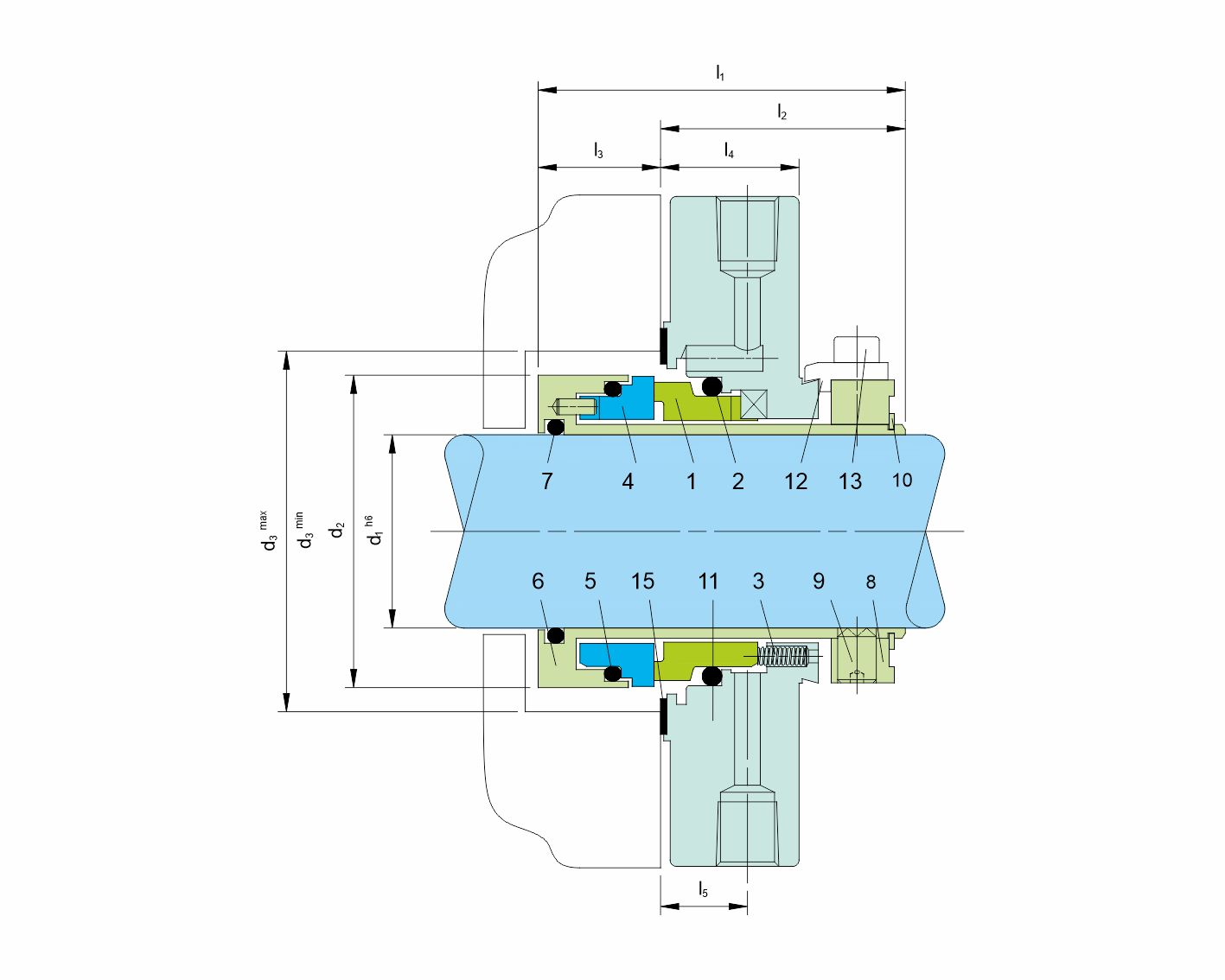

| Details | |
|---|---|
| Item No. | Description |
| 1 | Seal face |
| 2, 5,7 | O-Ring |
| 3 | Spring |
| 4 | Seat |
| 6 | Shaft sleeve |
| 8 | Drive collar |
| 9 | Set screw |
| 10 | Snap ring |
| 11 | Cover |
| 12 | Assembly fixture (remove after installation) |
| 13 | HSH Cap Screw |
| 14 | Plug |
| 15 | Gasket |
