Mechanical Seals

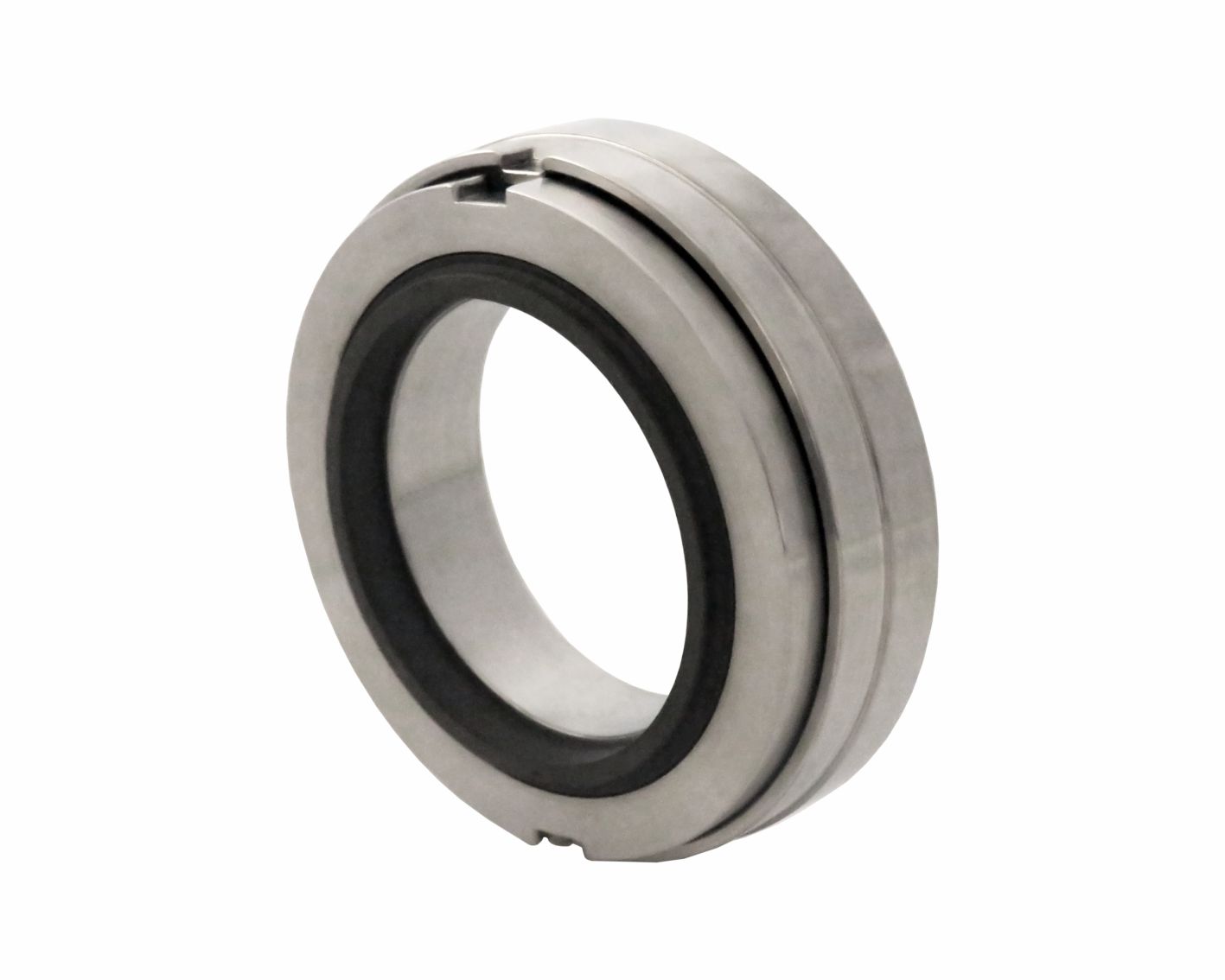

B100 / B800

Product Description

  • Single seal configuration
  • Balanced Design
  • Independent of direction of rotation
  • Stationary design with multiple springs

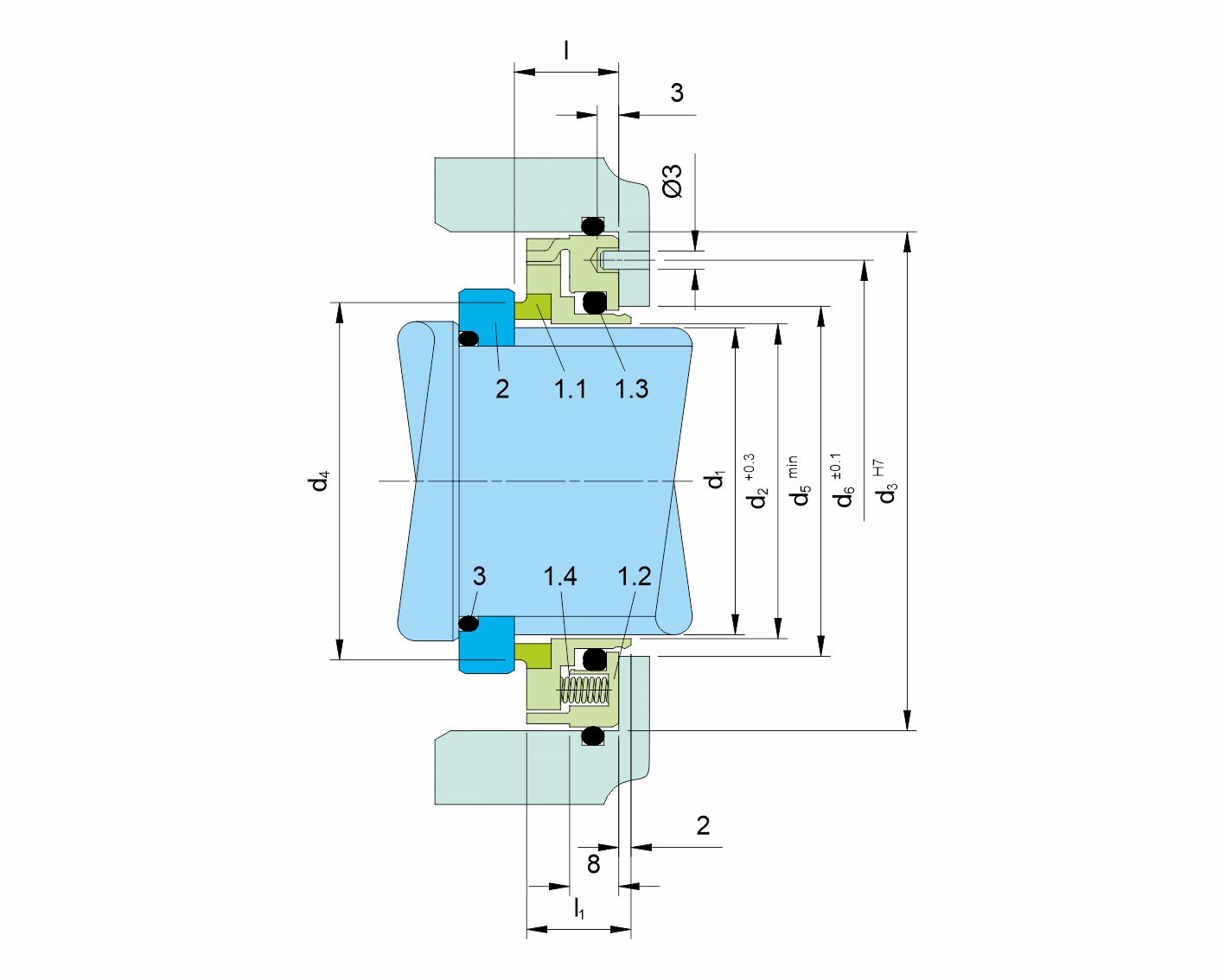

Details
Item No. Description
1.1 Seal Face
Seal Face Housing
1.2 Drive Collar
1.3 O-Ring
1.4 Spring
2 Rotating seat *
3 O-Ring

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Compact design
  • Capable of withstanding high pressure
  • O-Ring is dynamically loaded to prevent shaft damage
  • Spring loaded stationary design accommodates shaft misalignments
  • Can handle media with solid content
  • Easy to assemble due to short axial installation length
  • All seal chambers with a very short axial installation length
  • Bearing seal
  • Lube oils
  • Process industry
  • Roller seal
  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B)
  • Sizes: d1 = Upto 100 mm (Upto 4.000’’)
  • Pressure: p1 = 25 bar (363 PSI)
  • Temperature: t = -40 °C...+180 °C(-40 °F...+356 °F)
  • Speed = 50 m/s (164 ft/s)
