Mechanical Seals

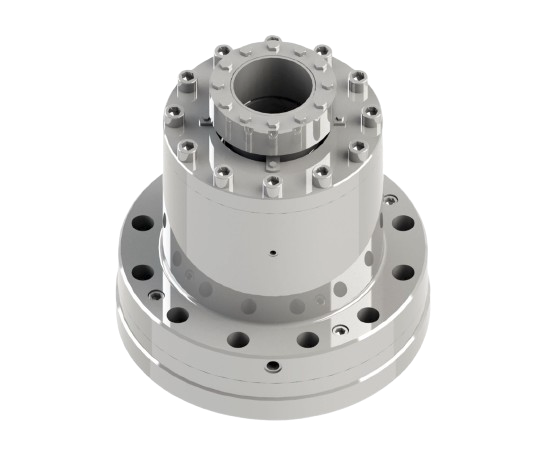

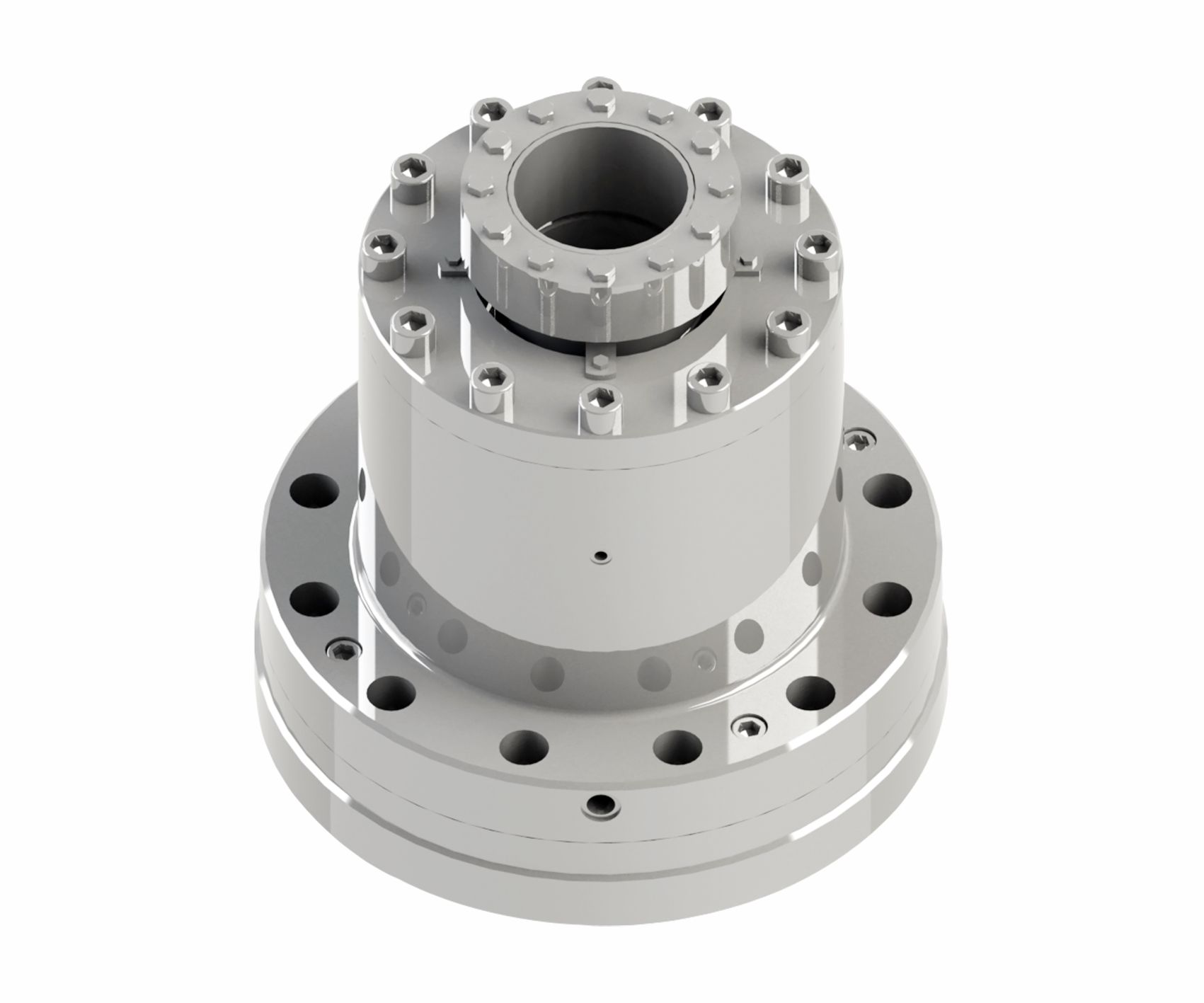

BSHLU-D

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Designed for bottom entry vessels
  • Rotary unit with multiple springs
  • Construction with Integrated bearing

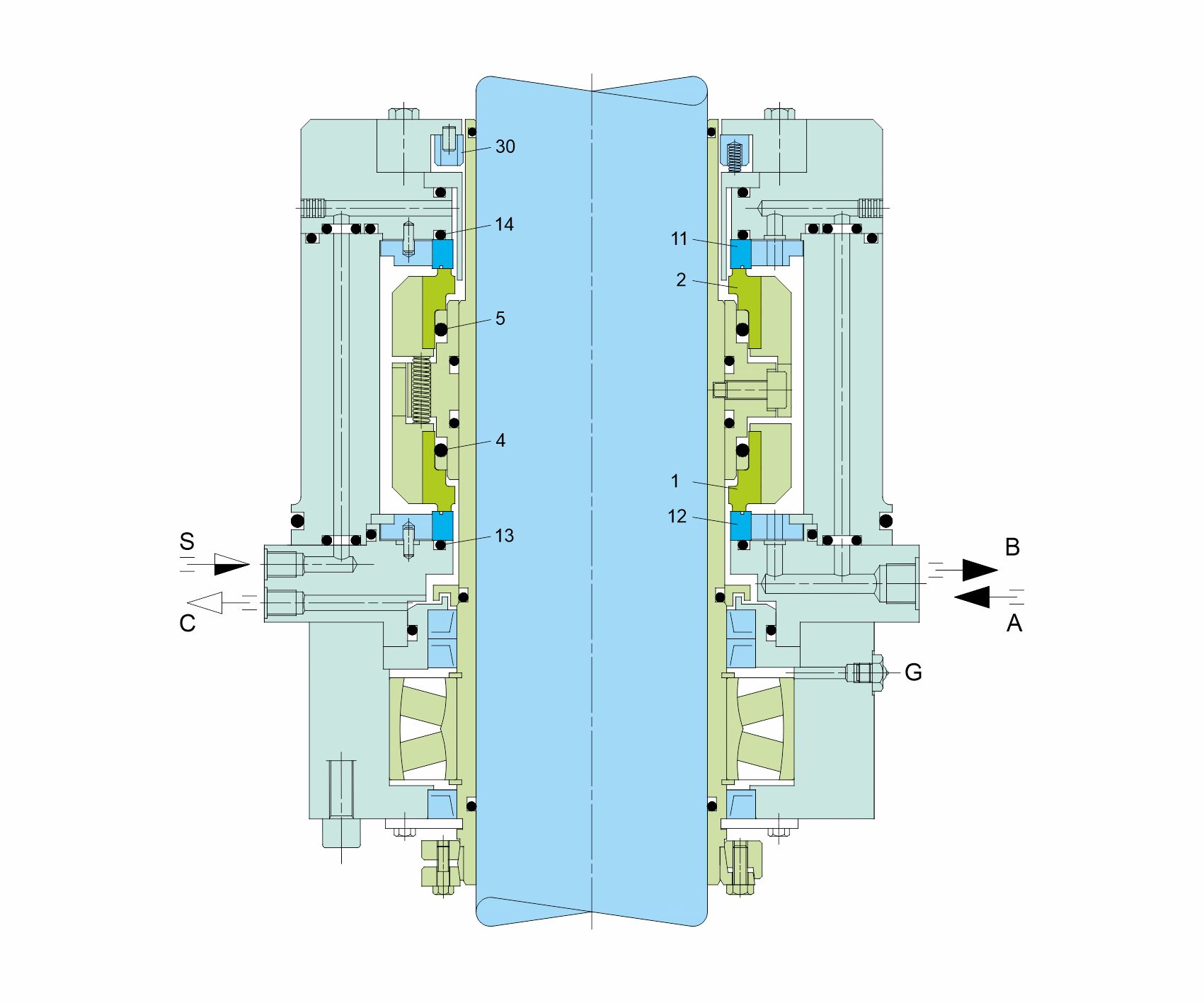

Details
Item No. Description
1 Seal face, atmosphere side
2 Seal face, product side
4, 5, 13, 14 O-Ring
11 Seat, product side
12 Seat, atmosphere side
30 Throttle ring

Download PDF
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Sealmatic Seals
Technical Features
  • Over all connecting dimensions are tailor made to customer's specifications
  • Specially designed to handle high operating pressure
  • Product side is equipped with floating throttle bush
  • The seal design is unique as it closes due to the hydraulic product pressure as well overlaying barrier pressure
  • Rugged design to ensure long term reliability and operating life
  • Seals are assembled in cartridge construction for easy fitment
  • Chemical industry
  • Suitable for all media
  • Agitators
  • Options:
    Cooling or heating flange
    Leakage drain, flush or heating flange
    Leakage drain or flush
  • According to application and customer's specification
  • Shaft diameter: dw = ... 400 mm ( ... 15.75")
  • Pressure: p1 = vacuum ... 60 bar (870 PSI)
  • Temperature: t = -40 °C ... +200 °C (-40 °F ... +392 °F)
  • Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)
    For applications beyond this range, please enquire.
