UFLWT800 Single Seal
API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 1 seal
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge Construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal ring and solid stationary ring

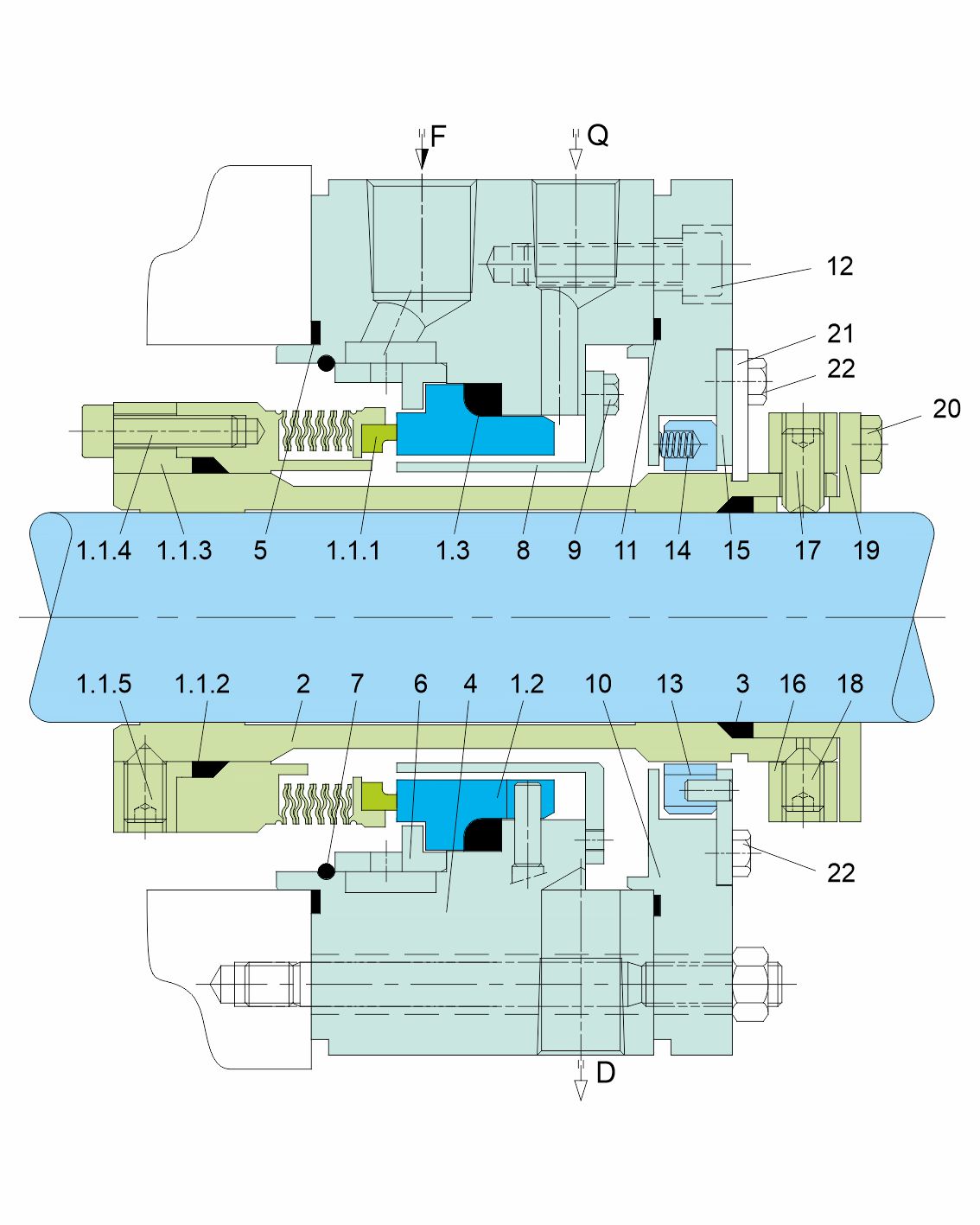

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1 | Seal ring with Bellows Unit |
| 1.1.2,1.3,3 | Sealing ring |
| 1.1.3 | Thrust ring |
| 1.1.4,12 | HSH cap screw |
| 1.1.5,17,18 | Set screw |
| 1.2 | Mating ring |
| 2 | Shaft sleeve |
| 4 | Gland |
| 5,11 | Gasket |
| 6 | Multi-flow distributor |
| 7 | Retaining ring |
| 8 | Quench baffle |
| 9,20,22 | Hexagon bolt |
| 10 | Cover |
| 13 | Throttle bushing |
| 14 | Spring |
| 15 | Washer |
| 16 | Set ring |
| 19 | Pusher ring |
| 21 | Setting plate |
| F | Flush |
| Q | Quench |
| D | Drain |
