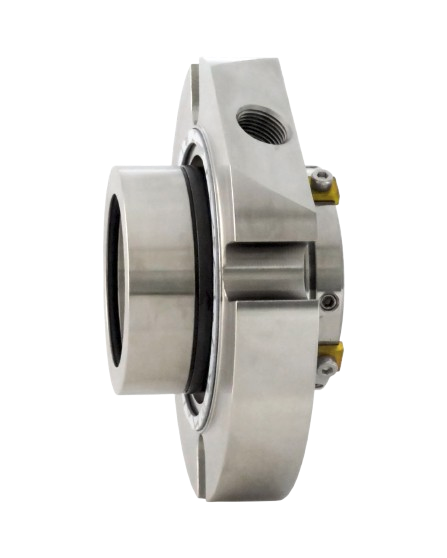

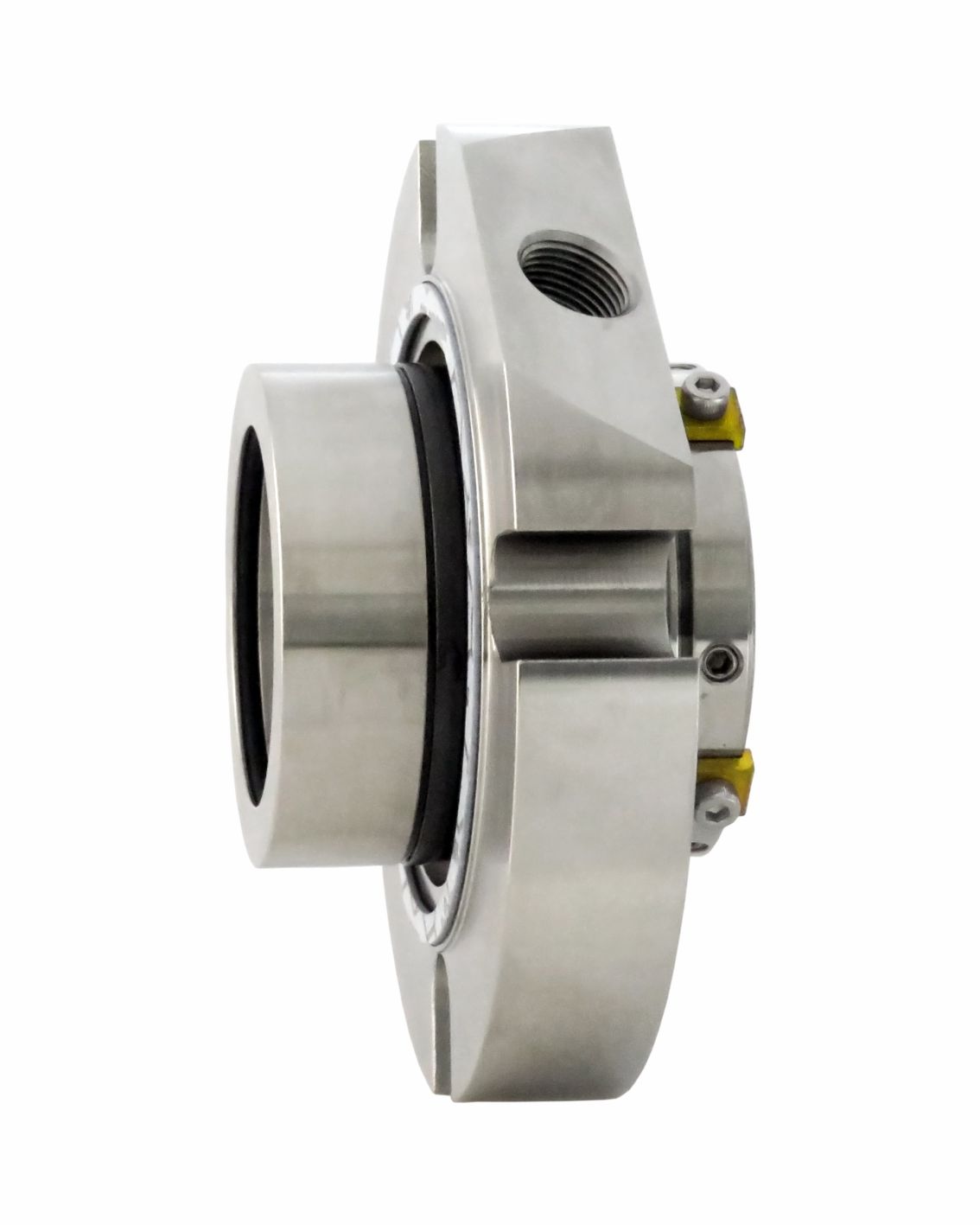

CTX Single Seals
Product Description
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction

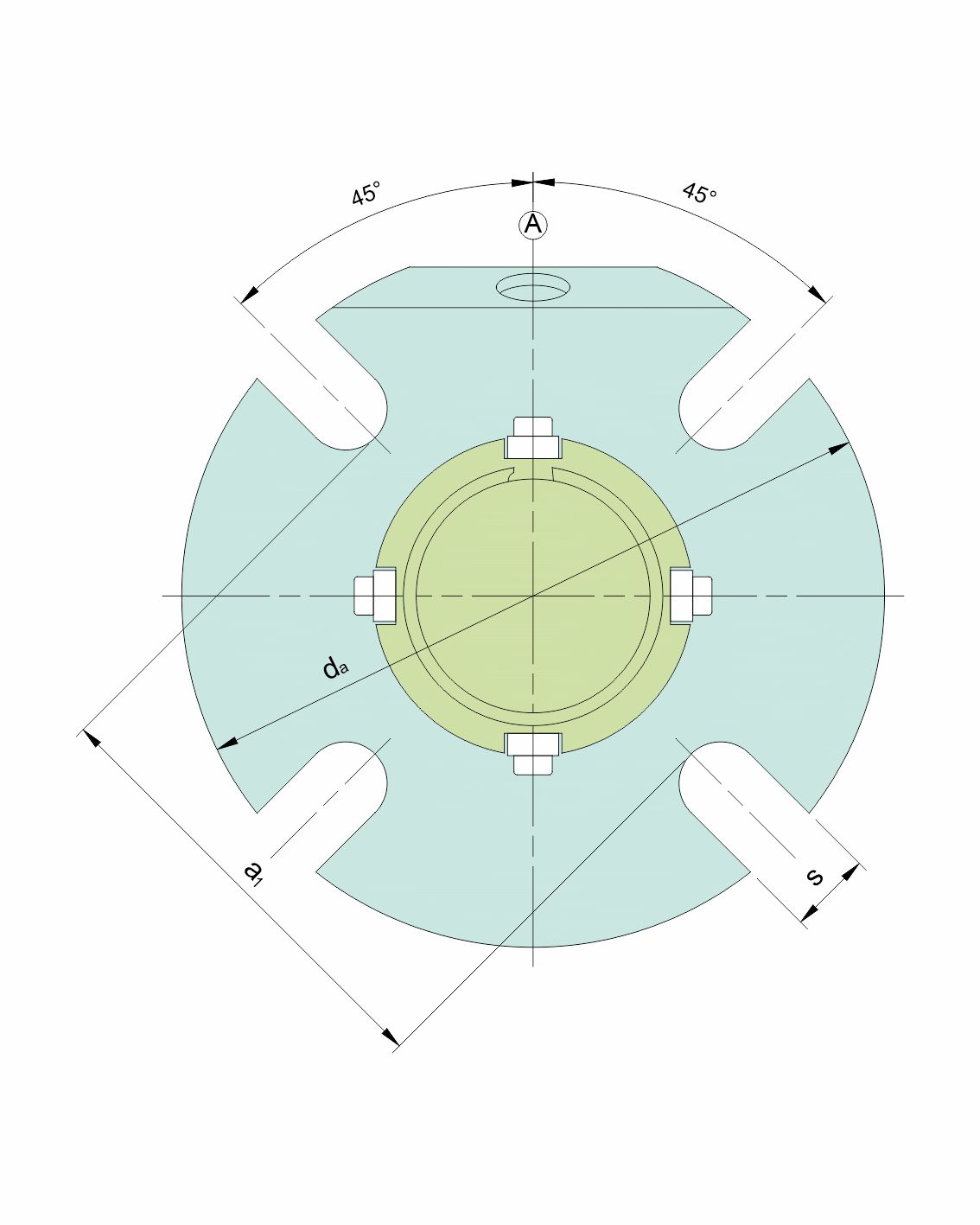

| Details | |
|---|---|

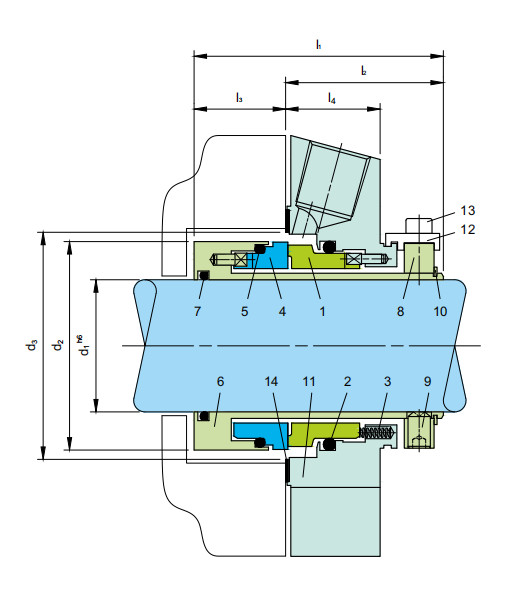

| Item No. | Description |
| 1 | Seal face |
| 2, 5, 7 | O-Ring |
| 3 | Spring |
| 4 | Seat |
| 6 | Shaft sleeve |
| 8 | Drive collar |
| 9 | Set screw |
| 10 | Snap ring |
| 11 | Cover |
| 12 | Assembly fixture |
| 13 | HSH Cap Screw |
| 14 | Gasket |
| 15 | Lip seal (-QN), throttle ring (-TN) |
