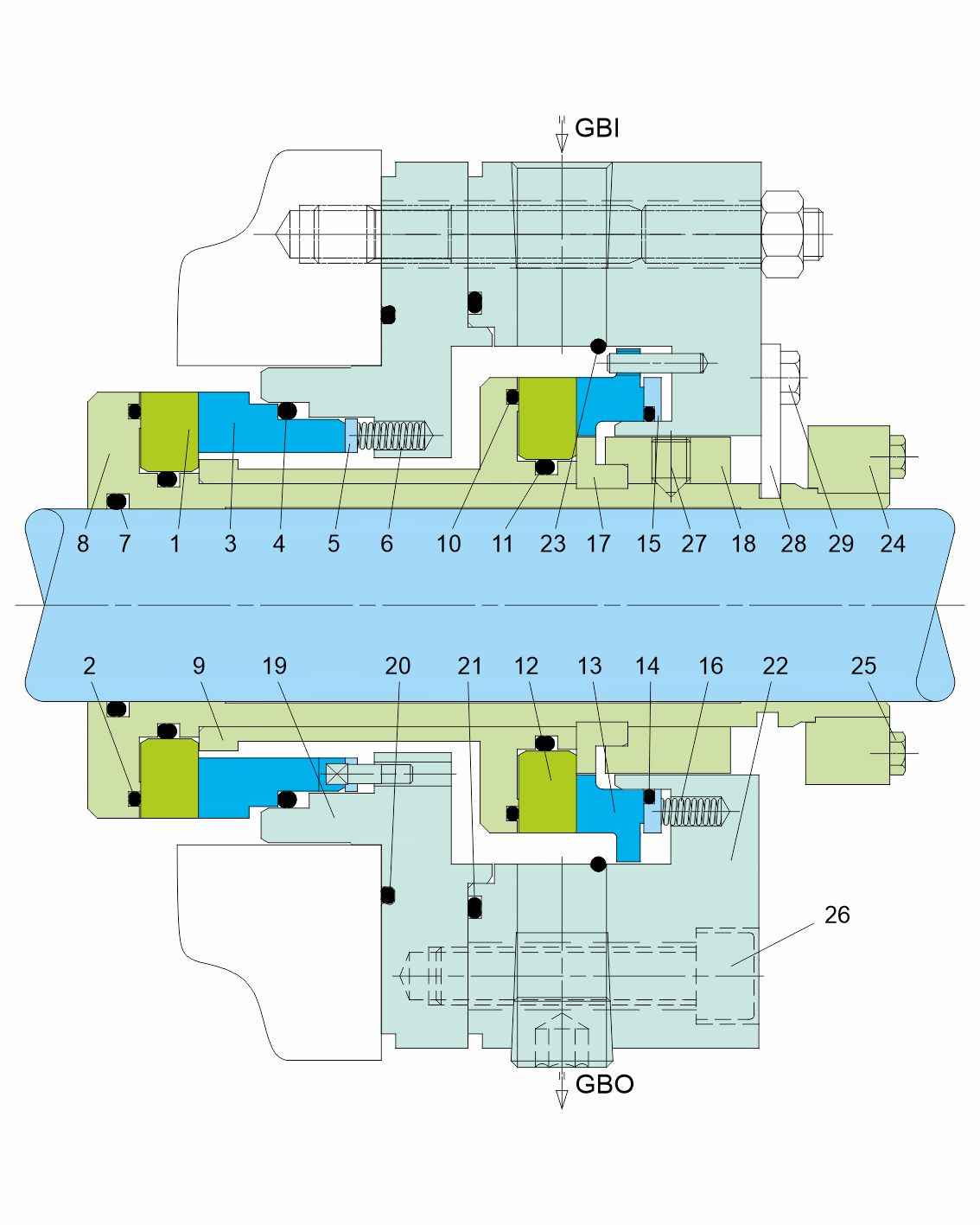

BGSR-Ta Dual Seal
API 682 4th Edition Category 2/3
Seal Type A (Stationary)
Configuration 3NC-FB (Non Contacting – Face-to-Back)
Product Description
- API 682 Category 2 and 3, Type A, Arrangement 3 seal
- Dual seal in face-to-back configuration
- Gas-lubricated
- Cartridge construction
- Balanced design
- Independent of direction of rotation
- Contact free operation, no friction
- Stationary springs
| Details | |
|---|---|
| Item No. | Description |
| 1,12 | Seal ring |
| 2,4,7,10,11,14,20,21 | O-ring |
| 3,13 | Mating ring |
| 5,15 | Thrust ring |
| 6,16 | Spring |
| 8 | Shaft sleeve |
| 9 | Adapter sleeve |
| 17 | Support ring |
| 18 | Pusher ring |
| 19 | Intermediate gland |
| 22 | Gland |
| 23 | Retaining ring |
| 24 | Set ring |
| 25,29 | Hexagon bolt |
| 26 | HSH cap screw |
| 27 | Set screw |
| 28 | Assembly plate |
| GBI | Gas Barrier IN |
| GBO | Gas Barrier OUT |
