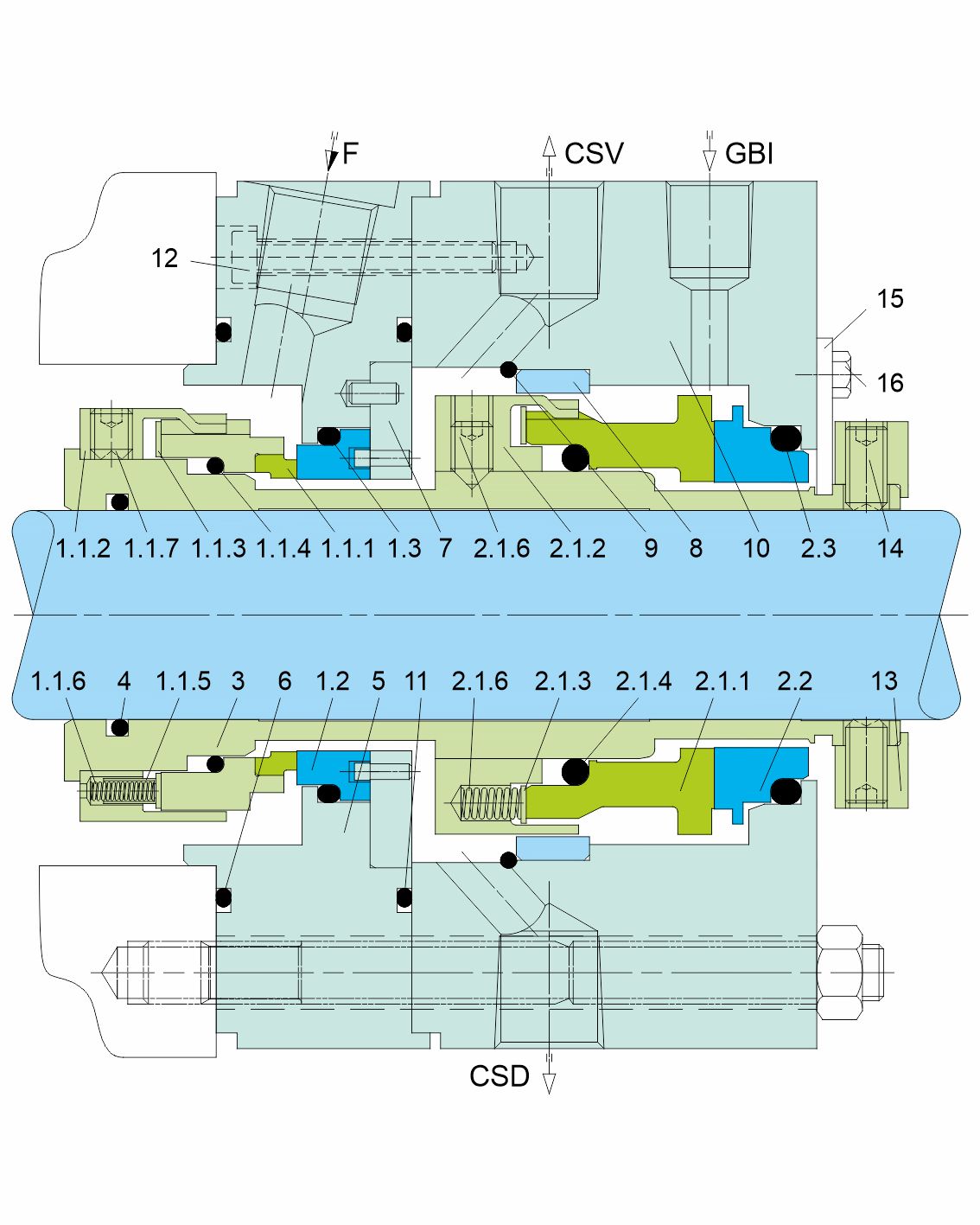

B750VK-GSPH Dual Seal
API 682 4th Edition Category 2&3
Seal Type A (Rotating)
Configuration 2CW-CS (Contacting Wet – Containment Seal)
Product Description
- API 682 Category 2 and 3, Type A, Arrangement 2 seal
- Dual seal in face-to-back configuration
- Balanced design
- Non contact outer seal (containment seal)
- Cartridge construction
- Rotating unit with multiple springs
| Details | |
|---|---|
| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring |
| 1.1.2,2.1.2 | Driver |
| 1.1.3,2.1.3 | Thrust ring |
| 1.1.4,1.3,2.1.4,2.3,4,6,11 | O-ring |
| 1.1.5 | Spring sleeve |
| 1.1.6,2.1.5 | Spring |
| 1.1.7,2.1.6,14 | Set screw |
| 1.2,2.2 | Mating ring |
| 3 | Shaft sleeve |
| 5 | Intermediate gland |
| 7 | Washer |
| 8 | Throttle bush |
| 9 | Retaining ring |
| 10 | Cover |
| 12 | HSH cap screw |
| 13 | Set ring |
| 15 | Assembly plate |
| 16 | Hexagon bolt |
| F | Flush |
| GBI | Gas Buffer IN |
| CSV | Containment Seal Vent |
| CSD | Containment Seal Drain |
