VTX Dual Seals

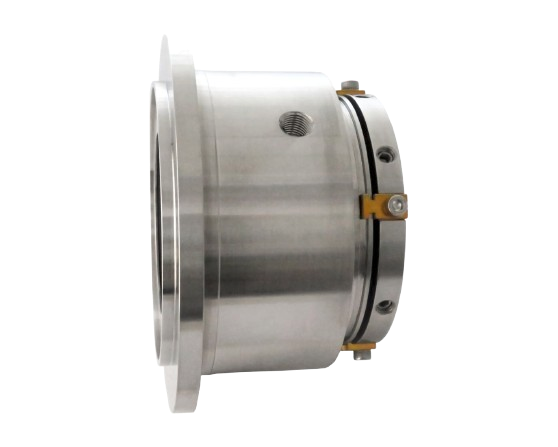

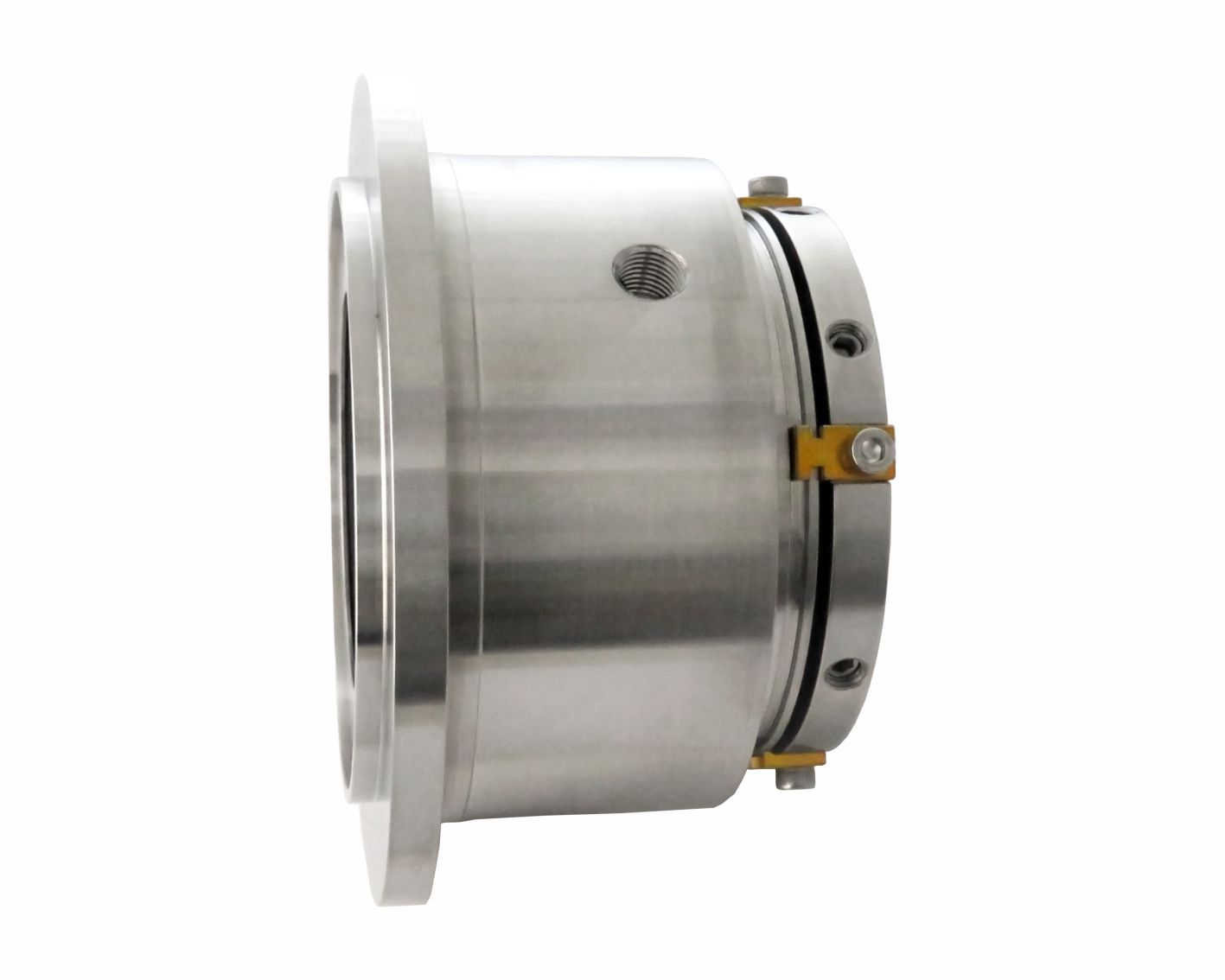

Product Description

  • Dual seal configuration
  • Balanced design
  • Independent of direction of rotation
  • Cartridge construction
  • Double pressure balanced
  • Designed with integrated pumping device for increased efficiency in circulation
  • Suitable for eccentric screw pumps

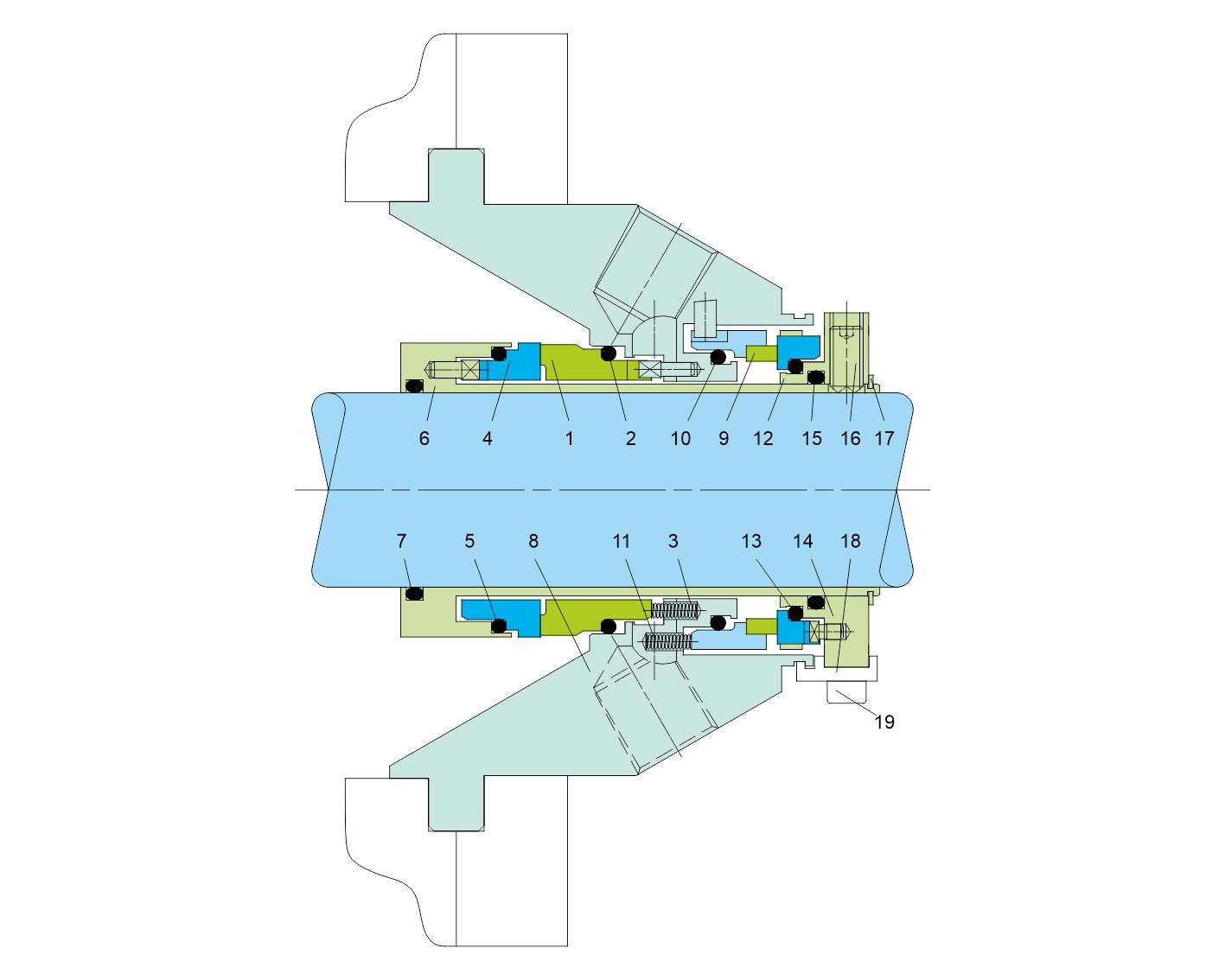

Item No. Description
1 Seal face
2,5,7,10,13,15 O-Ring
3 Spring
4,12 Seat
6 Shaft sleeve
8 Cover
9 Seal Face
11 Spring
14 Driver
16 Set screw
17 Retaining Ring
18 Assembly Fixture
19 HSH Cap Screw

CTX seals with modified cover for eccentric screw pumps.
Example Pumps: Seepex BN, Netzsch NM...S, NM...B, NE (P), Allweiler AE, AEB, AED, Robbins & Myers / Moyno 2000 CC, and Mono E-Range.
