Product Description

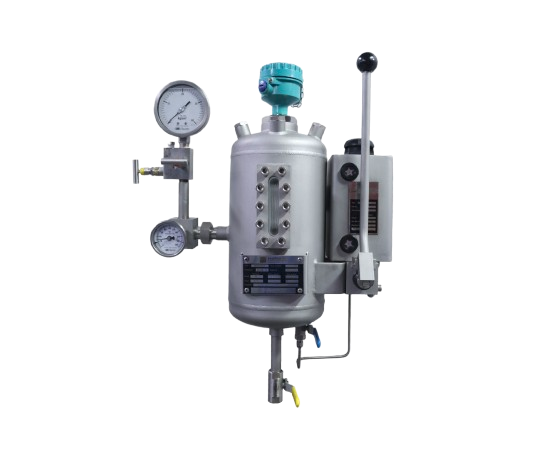

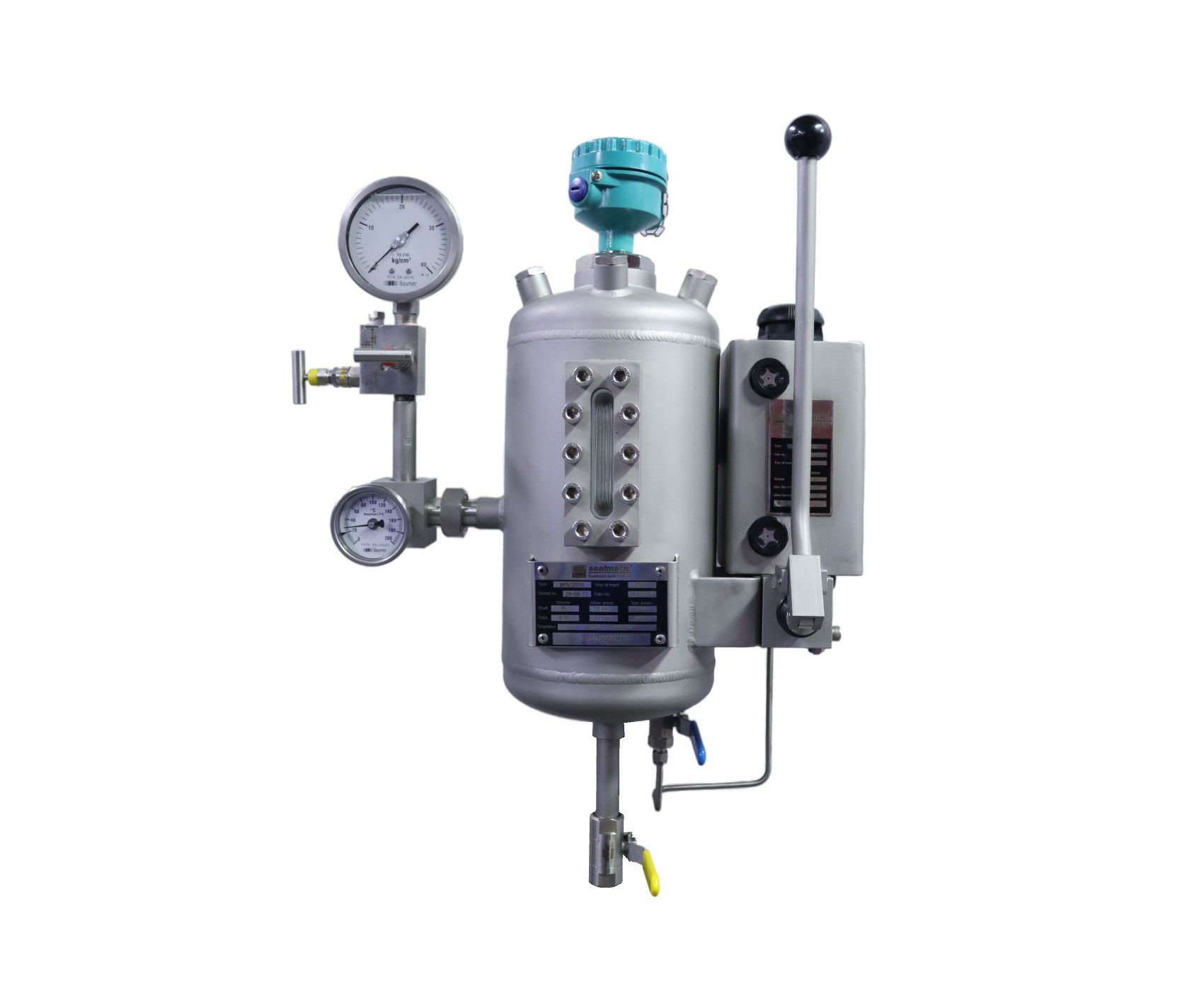

  • BFS 2000 system is employed for applications in sealing systems with a wide variety of operating parameters for supplying buffer/barrier fluid to double and tandem mechanical seals. The BFS 2000 system is available in standard sizes with flat ends, sight-glasses for level monitoring and with or without cooling coil. BFS 2000 system is equipped as a standard with all the necessary system connections and brackets. Modular design combination available with a wide variety of system components and instruments selection possible such as, level switch, circulation pump, hand refill pump, thermometer, base frame etc.
  • Circulation in accordance with API 682 / ISO 21049: Plan 52, Plan 53A

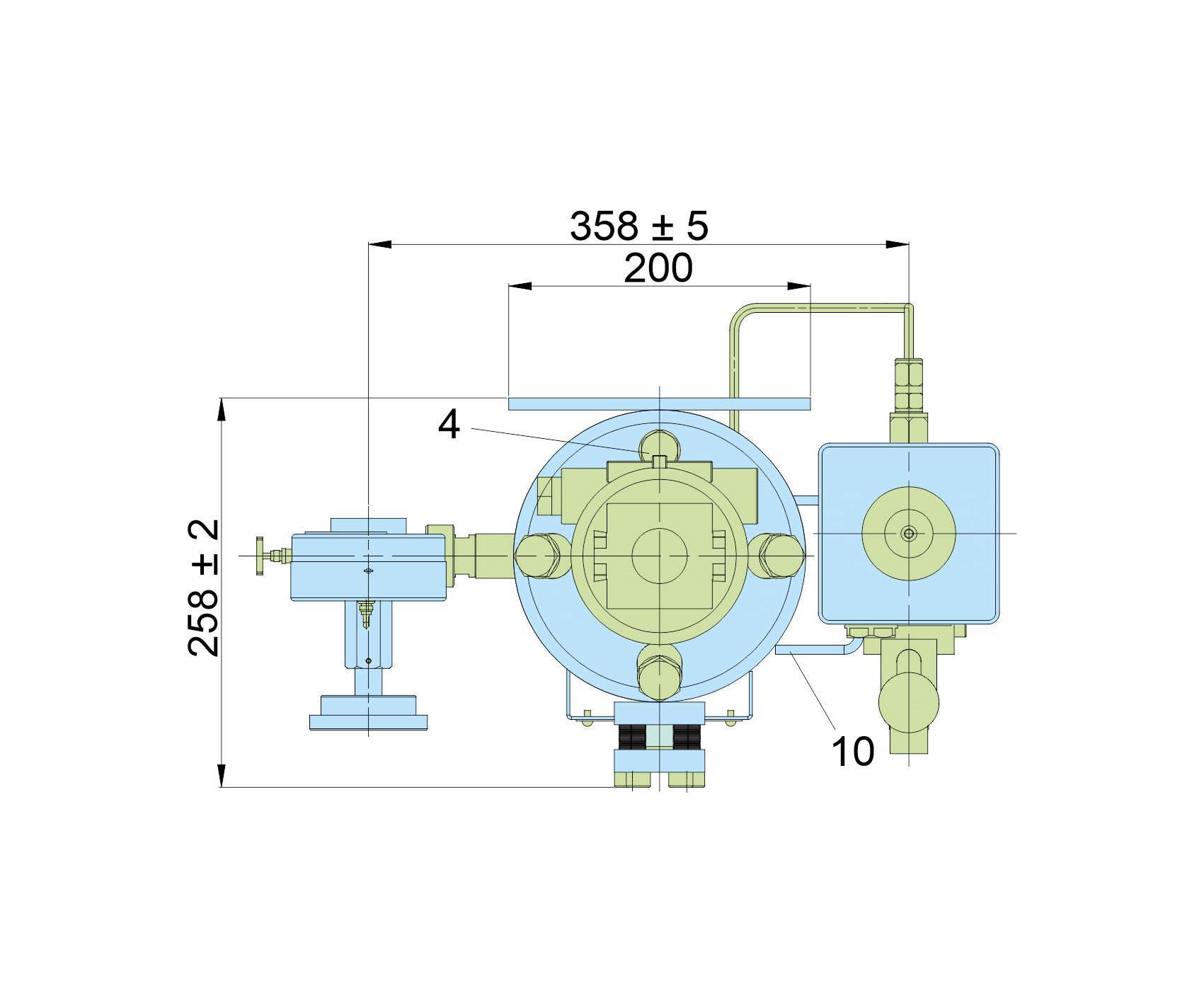

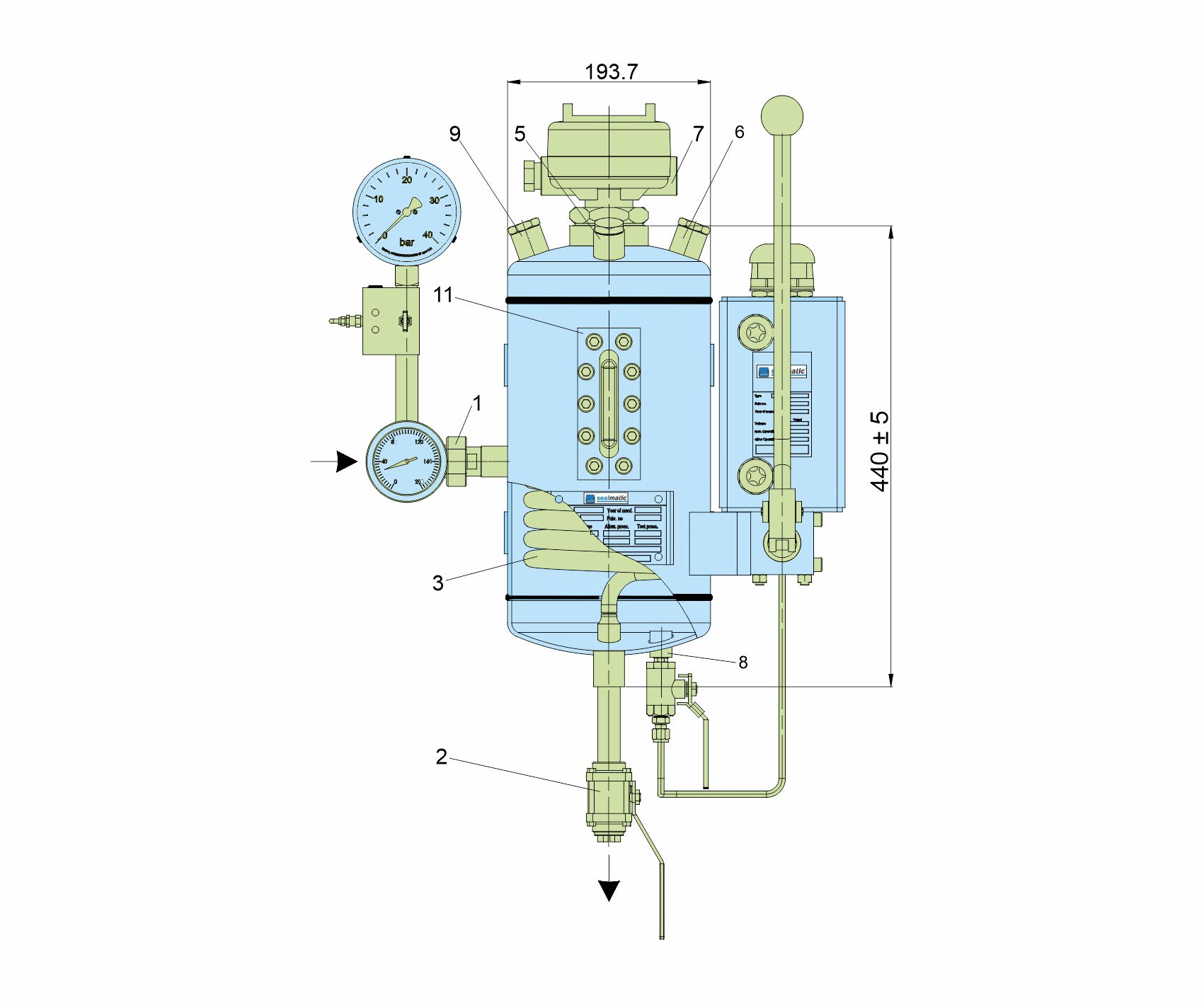

Item No. Description
1 Buffer/barrier fluid IN (G1/2")
2 Buffer/Barrier fluid OUT (G1/2")
3 Cooling water IN (G1/2")
4 Cooling water OUT (G1/2")
5 Filling connection with plug (G1/2")
6 Pressure gas connection (G1/2")
7 Connection for level switch or level indicator (G2")
8 Connection for hand refill pump (G1/2")
9 Universal connection (G1/2") for safety valve, flare,etc
10 Bracket for hand refill pump
11 Sight-glass
